• Nuevo

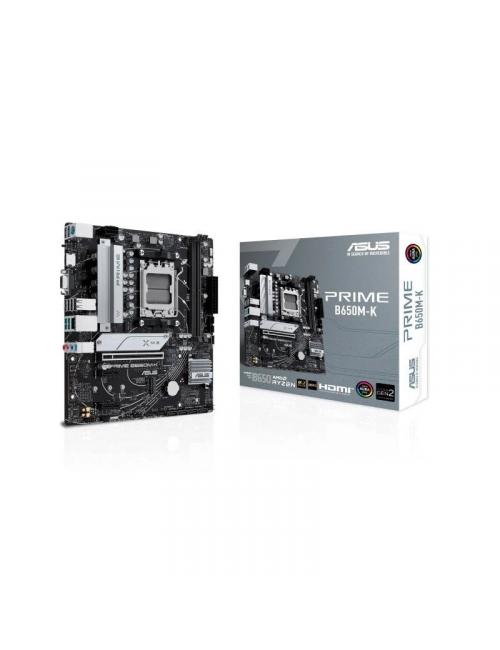

Asus placa base prime b650m-k matx am5
Asus

Asus placa base prime b650m-k matx am5

Referencia: 90MB1F60-M0EAY0
95,54 €
Impuestos excluidos
Placas base - AMD socket AM5 - Asus - Asus placa base prime b650m-k matx am5
Guía de Tallas
Guía de Tallas
CLOTHES
MEASUREXS/34S/36M/38-40L/40-42
UK681012
USA46810
FRA36384042
Waist (cm)64687276
Chest (cm)81858993
Seat (cm)899397101
Inseam (cm)81828384


SHOES
FOOT IN INCHESFOOT IN CMUSAEuroUK
23.56395
24.16.539.55.5
24.87.5406
1025.48417
10¼25.78.541.57.5
10½269428
10¾27.39.542.59.5

How to Take Clothing Measurements

  1. Get a flexible measuring tape. These are often sold in craft stores
  2. Neck:
    • Measure around the base of the neck in inches.
    • Round up to the nearest half inch.
  3. Chest:
    • Wrap tape measure under armpits around fullest part of chest (usually right above nipples
  4. Sleeve:
    • Bend your elbow and rest your hand on your hip.
    • Have someone measure from the middle of the back of your neck to your wrist by putting the tape measure over your shoulder, around your elbow and to your wrist.
  5. Waist:
    • Wrap tape measure around where you normally wear your pants. Keep tape measure a little loose by keeping a finger between the tape measure and your waist.
  6. Inseam:
    • Put on a pair of shoes.Have someone measure from your crotch to back of the heel, where you want your pants to end.
  7. Hands:
    • Measure around the hand at the fullest part (exclude thumb). The number of inches shows the size of the glove.
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)


Marca Asus
Modelo 90MB1F60-M0EAY0
Plataforma - mATX (24,4 cm x 21,1 cm)
Chipset - Intel B650
CPU Soportados - AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors
Memoria - 2 x DIMM, Max. 96GB, DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory*
- Dual Channel Memory Architecture
- Supports AMD Extended Profiles for Overclocking (EXPO™)
- OptiMem II
Slots Expansión
- 1 x PCIe 4.0 x16 slot (supports x16 mode)
- 2 x PCIe 4.0 x1 slots
Gráficos - 1 x VGA
- 1 x HDMI
Puertos E/S,
Conectores

Conectores Internos E/S
- 1 x 4-pin CPU Fan header
- 2 x 4-pin Chassis Fan headers
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- 2 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- 1 x USB 3.2 Gen 1 connector (supports USB Type-C® )
- 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
- 2 x Addressable Gen 2 headers
- 1 x Aura RGB header
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front Panel Audio header (AAFP)
- 1 x S/PDIF Out header
- 1 x Speaker header
- 1 x SPI TPM header (14-1pin)
- 1 x 10-1 pin System Panel header
Panel E/S Trasero
- 2 x USB 3.2 Gen 2 ports (2 x Type-A)
- 2 x USB 3.2 Gen 1 ports (2 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- 1 x VGA port
- 1 x HDMI port
- 1 x Realtek 2.5Gb Ethernet port
- 3 x Audio jacks
- 1 x BIOS FlashBack button
- 1 x PS/2 Keyboard/Mouse combo port
Otras
Características
Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
LAN
- 1 x Ethernet Realtek de 2,5 Gb
Almacenamiento
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- 4 x SATA 6Gb/s ports
USB
- 2 x USB 3.2 Gen 2 ports (2 x Type-A)
- 2 x USB 3.2 Gen 1 ports (2 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- 1 x USB 3.2 Gen 1 connector (supports USB Type-C)
- 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Fecha Revisión 15-07-2024 por RTY
