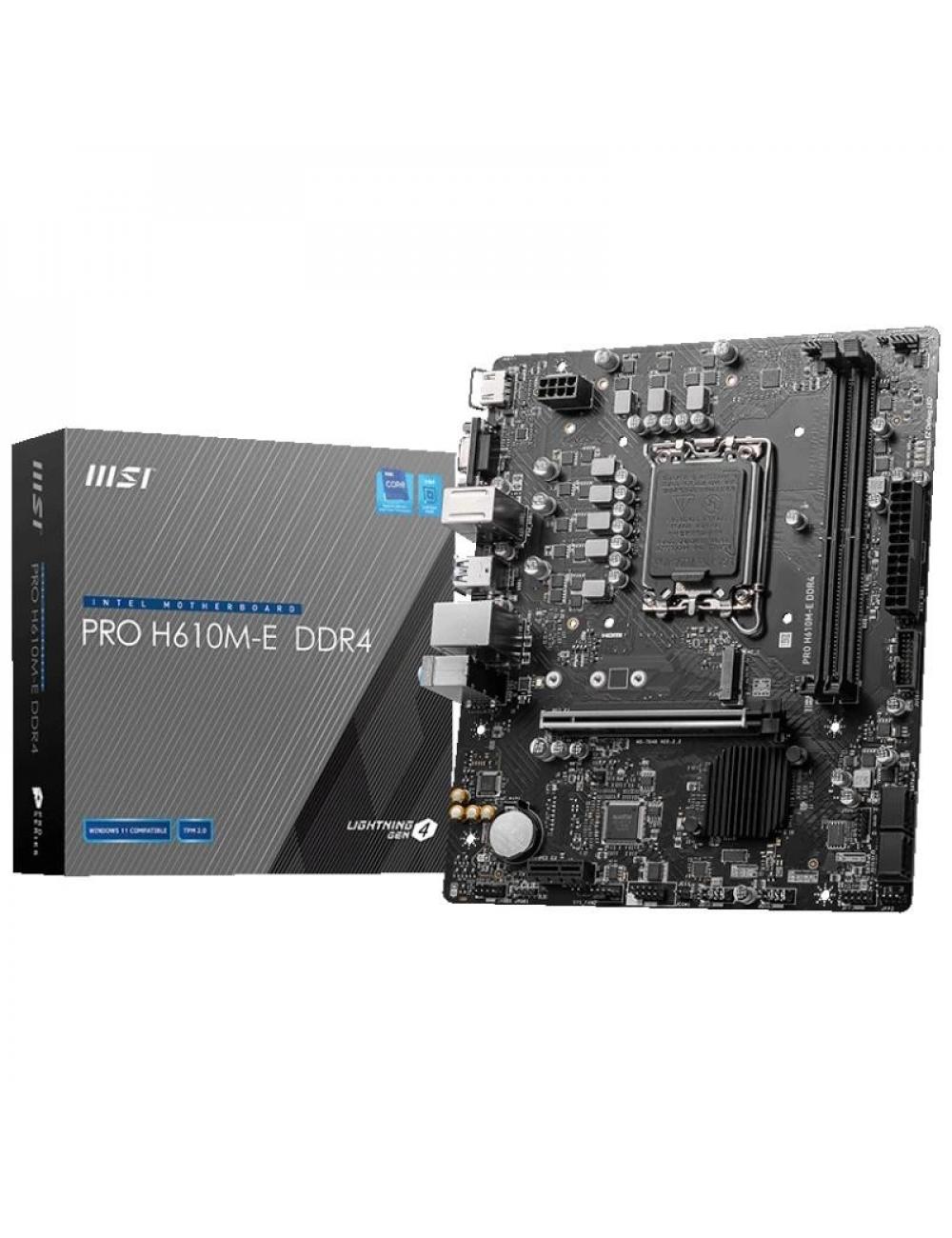

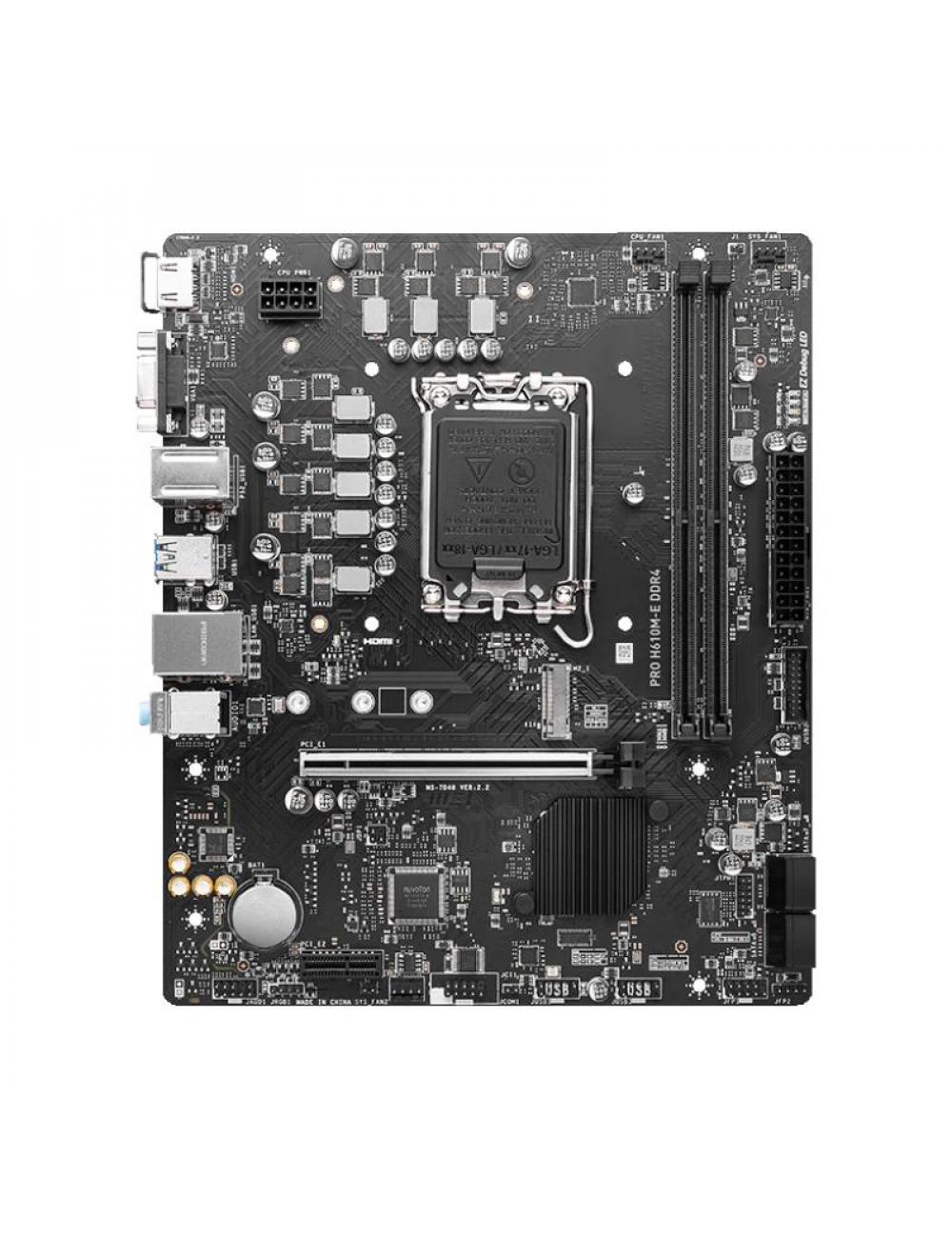

Msi placa base pro h610m-e ddr4 matx 1700
MSI

Msi placa base pro h610m-e ddr4 matx 1700

Referencia: 911-7D48-012
59,48 €
Impuestos excluidos
Placas base - Intel socket 1700 - MSI - Msi placa base pro h610m-e ddr4 matx 1700
Guía de Tallas
Guía de Tallas
CLOTHES
MEASUREXS/34S/36M/38-40L/40-42
UK681012
USA46810
FRA36384042
Waist (cm)64687276
Chest (cm)81858993
Seat (cm)899397101
Inseam (cm)81828384


SHOES
FOOT IN INCHESFOOT IN CMUSAEuroUK
23.56395
24.16.539.55.5
24.87.5406
1025.48417
10¼25.78.541.57.5
10½269428
10¾27.39.542.59.5

How to Take Clothing Measurements

  1. Get a flexible measuring tape. These are often sold in craft stores
  2. Neck:
    • Measure around the base of the neck in inches.
    • Round up to the nearest half inch.
  3. Chest:
    • Wrap tape measure under armpits around fullest part of chest (usually right above nipples
  4. Sleeve:
    • Bend your elbow and rest your hand on your hip.
    • Have someone measure from the middle of the back of your neck to your wrist by putting the tape measure over your shoulder, around your elbow and to your wrist.
  5. Waist:
    • Wrap tape measure around where you normally wear your pants. Keep tape measure a little loose by keeping a finger between the tape measure and your waist.
  6. Inseam:
    • Put on a pair of shoes.Have someone measure from your crotch to back of the heel, where you want your pants to end.
  7. Hands:
    • Measure around the hand at the fullest part (exclude thumb). The number of inches shows the size of the glove.
Cantidad
  Fuera de stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)


Marca MSI
Modelov 911-7D48-012
Plataforma - Mirco-ATX
Chipset - Intel® H610 Chipset
CPU
Soportados
- Admite procesadores 12th/ 13th / 14th Gen Intel® Core™, Pentium® Gold y Celeron®
- Zócalo del procesador LGA1700
Memoria - 2 x DDR4 slots, soporta hasta 64GB
- Soporta 1R 2133/ 2666/ 3200 MHz (por JEDEC y POR)
- Admite el modo de doble canal
- Admite memoria sin búfer ni ECC
PUERTOS SATA - 4x SATA 6Gb/s ports (From H610 chipset)
M.2 SSD SLOT - 1x M.2 slot (Key M) (from CPU)
- Soporta PCIe 3.0 x4
- Soporta dispositivos de almacenamiento 2242/ 2260/ 2280
Slots Expansión
- 1x PCIe x16 slot (de CPU)
- Soporta hasta PCIe 4.0 x16
- 1x PCIe x1 slot (de chipset H610 )
- Soporta PCIe 3.0 x1
Gráficos - 1 x HDMI 1.4 con puerto HDR, soporta resolución maxima de 4K 30Hz
- 1 x VGA, máx. res. 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
(* Las especificaciones pueden variar dependiendo de la CPU instalada)
LAN - 1x Realtek® RTL8111H 1Gbps LAN
AUDIO - Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Puertos E/S,
Conectores

Conectores Internos E/S
- 1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset)
- Soporta 2 puertos USB 3.2 Gen 1 5Gbps adicionales
- 2x USB 2.0 Type-A  (desde Hub-GL850G)
- Soporta 4 USB 2.0 adicionales
- 1x audio conector frontal
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1x modulo TPM
- 1x Clear CMOS jumper
- 1x 4-pin RGB LED connector
- 4x EZ Debug LED
- 1x 24-pin ATX main power
- 1x 8-pin +12V power
Panel E/S Trasero
- 1 x HDMI™
- 1 x VGA
- 1 x Keyboard / Mouse
-  2 x USB 3.2 Gen 1 5Gbps Type-A
- 1 x LAN port
- 1 x Audio conector
- 4 x USB 2.0
Sistema Operativo
- Soporte para Windows 11 64-bit, Windows 10 64-bit
Dimensiones - 236 x 200 mm
- M-ATX
Fecha Revisión 23-06-2025 por RTY
