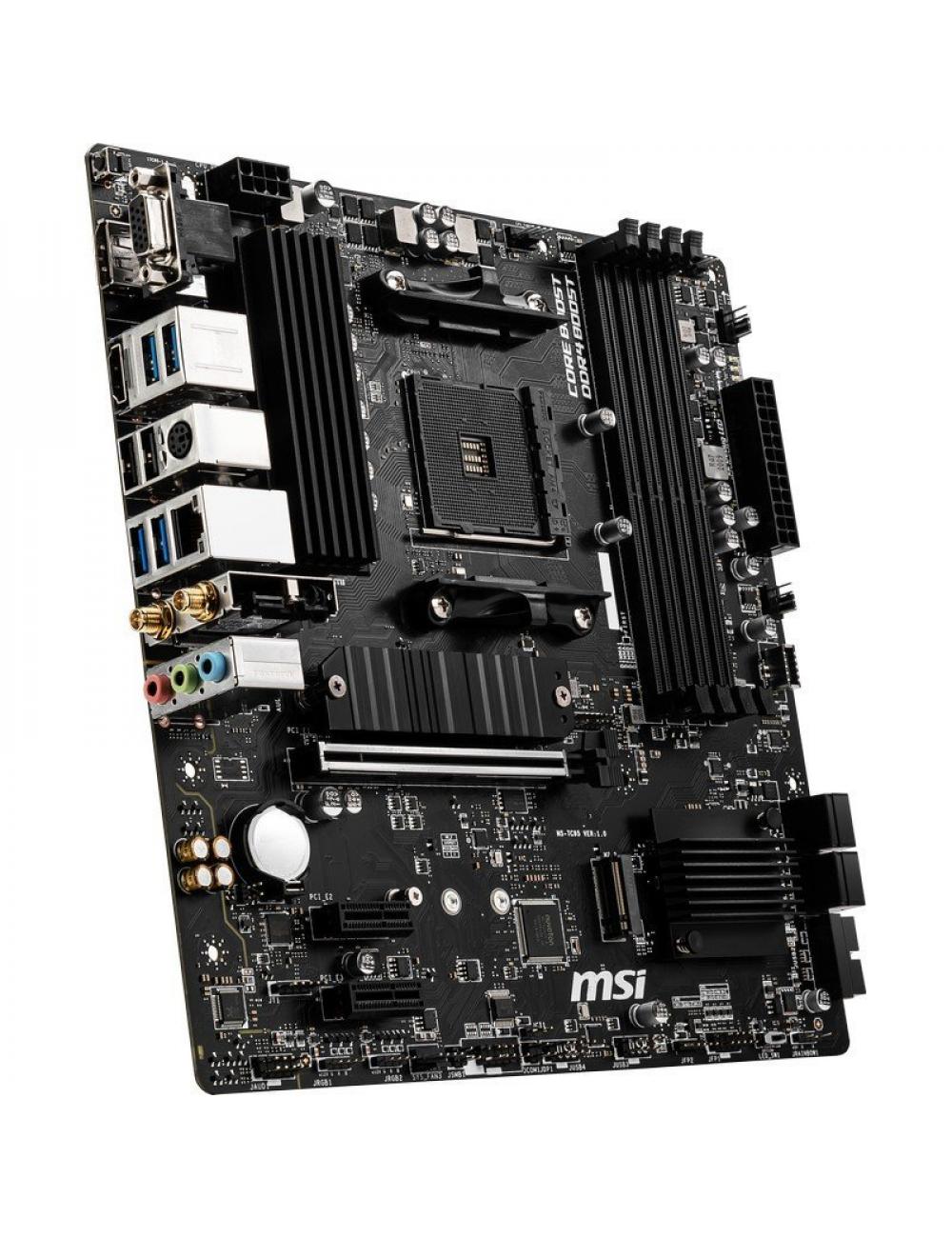

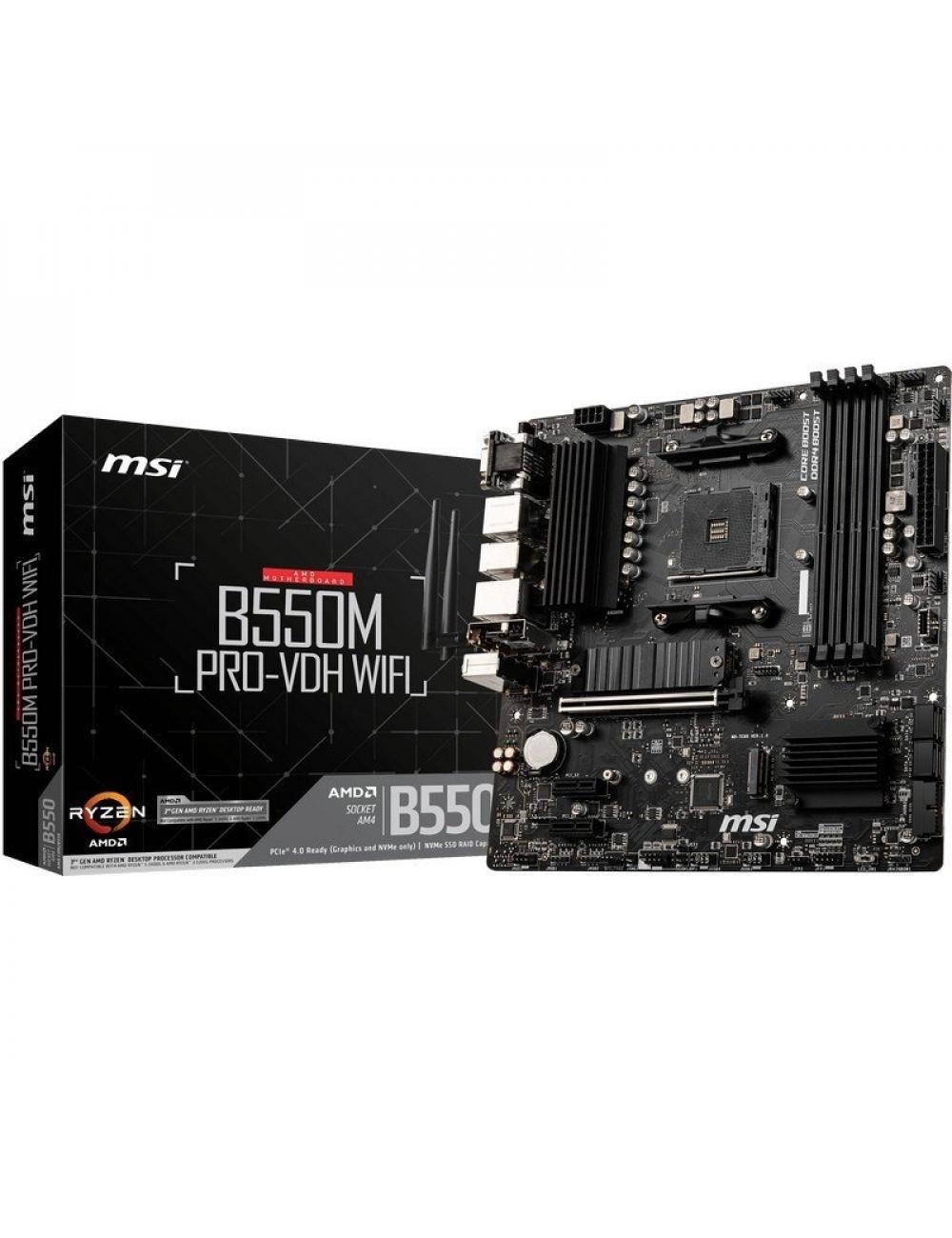

Msi placa base b550m pro-vdh wifi matx am4
MSI

Msi placa base b550m pro-vdh wifi matx am4

Referencia: 911-7C95-008
103,07 €
Impuestos excluidos
Placas base - AMD socket AM4 - MSI - Msi placa base b550m pro-vdh wifi matx am4
Guía de Tallas
Guía de Tallas
CLOTHES
MEASUREXS/34S/36M/38-40L/40-42
UK681012
USA46810
FRA36384042
Waist (cm)64687276
Chest (cm)81858993
Seat (cm)899397101
Inseam (cm)81828384


SHOES
FOOT IN INCHESFOOT IN CMUSAEuroUK
23.56395
24.16.539.55.5
24.87.5406
1025.48417
10¼25.78.541.57.5
10½269428
10¾27.39.542.59.5

How to Take Clothing Measurements

  1. Get a flexible measuring tape. These are often sold in craft stores
  2. Neck:
    • Measure around the base of the neck in inches.
    • Round up to the nearest half inch.
  3. Chest:
    • Wrap tape measure under armpits around fullest part of chest (usually right above nipples
  4. Sleeve:
    • Bend your elbow and rest your hand on your hip.
    • Have someone measure from the middle of the back of your neck to your wrist by putting the tape measure over your shoulder, around your elbow and to your wrist.
  5. Waist:
    • Wrap tape measure around where you normally wear your pants. Keep tape measure a little loose by keeping a finger between the tape measure and your waist.
  6. Inseam:
    • Put on a pair of shoes.Have someone measure from your crotch to back of the heel, where you want your pants to end.
  7. Hands:
    • Measure around the hand at the fullest part (exclude thumb). The number of inches shows the size of the glove.
Cantidad
  Fuera de stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)


Marcamsi
ModeloB550 PRO-VDH WIFI
(911-7C95-008)
Plataforma- mATX (24.4 cm x 24.4 cm)
Chipset- AMD® B550 chipset
CPU
Soportados
- Soporta AMD® RYZEN™ 3ª Generación con Socket AM4
Memoria- 4 x DDR4 memory slots, soporta hasta 128GB
- Soporta DDR4 1866/2133/2400/2667/2800/2933/3000/3066/3200 MHz por JEDEC
- Soporta DDR4 2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133/4266/4400 + MHz por A-XMP OC MODE)
- Dual channel memory architecture
- Soporta non-ECC UDIMM memory
- Soporta ECC UDIMM memory (non-ECC mode)
- Soporta un-buffered memory
Slots Expansión
- 1 x PCIe 4.0 / 3.0 x16 slot (PCI_E1)
- 2 x PCIe 3.0 x1 slots
Gráficos- 1 x VGA, 2048x1536 @ 50Hz, 2048x1280 @ 60Hz, 1920x1200 @ 60Hz
- 1 x DisplayPort, 4096x2160 @ 60Hz
- 1 x HDMI 2.1, 4096x2160 @ 60Hz
- Memoria compartida máxima de 16 GB
Puertos E/S,
Conectores

Internos
- 1 x 24-pin ATX main power
- 1 x 8-pin ATX 12V power
- 4 x SATA 6Gb/s connectors
- 2 x M.2 slots (M-Key)
- 1 x USB 3.2 Gen 1 5Gbps Type-C
- 1 x USB 3.2 Gen 1 5Gbps
- 2 x USB 2.0
- 1 x 4-pin CPU fan
- 1 x 4-pin water-pump fan
- 3 x 4-pin system fan
- 1 x Front panel audio
- 2 x System panel
- 1 x Serial port
- 1 x Chassis Intrusion
- 2 x 4-pin RGB LED
- 2 x 3-pin RAINBOW LED
- 1 x TPM module
- 1 x Clear CMOS jumper
Externos
- VGA
- USB 3.2 Gen 1 5Gbps Type-A
- Keyboard / Mouse
- LAN
- Flash BIOS Button
- DisplayPort
- HDMI
- USB 2.0
- USB 3.2 Gen 1 5Gbps Type-A
- Wi-Fi Antenna connectors
- 3x Audio jacks
Otras
Características
Almacenamiento
- 4 x SATA 6Gb/s
- 2 x M.2 slots (Key M)
RAID
- Soporta RAID 0, RAID 1 y RAID 10 para dispositivos SATA
- Soporta RAID 0 y RAID 1 para M.2 NVMe RAID
USB
- 3 x USB 3.2 Gen 1
- 6 x USB 2.0
- 4 x USB 3.2 Gen 1 5Gbps
Red
- 1 x Realtek® RTL8111HN Gigabit LAN
Wi-Fi y Bluetooth
- Admite Wi-Fi 802.11 a / b / g / n / ac, banda dual (2.4GHz, 5GHz) hasta una velocidad de 433 Mbps.
- Admite Bluetooth de modo dual 2.1, 2.1 + EDR, 3.0, 4.0, BLE, 4.2
Audio
- Realtek® ALC892 Codec
- 7.1-Channel High Definition Audio
Montaje
- 8 x agujeros de montaje
Fecha Revisión01-09-2020 por MSB

Detalle de productos

Referencias Específicas

ean13
4719072733698
