• Nuevo

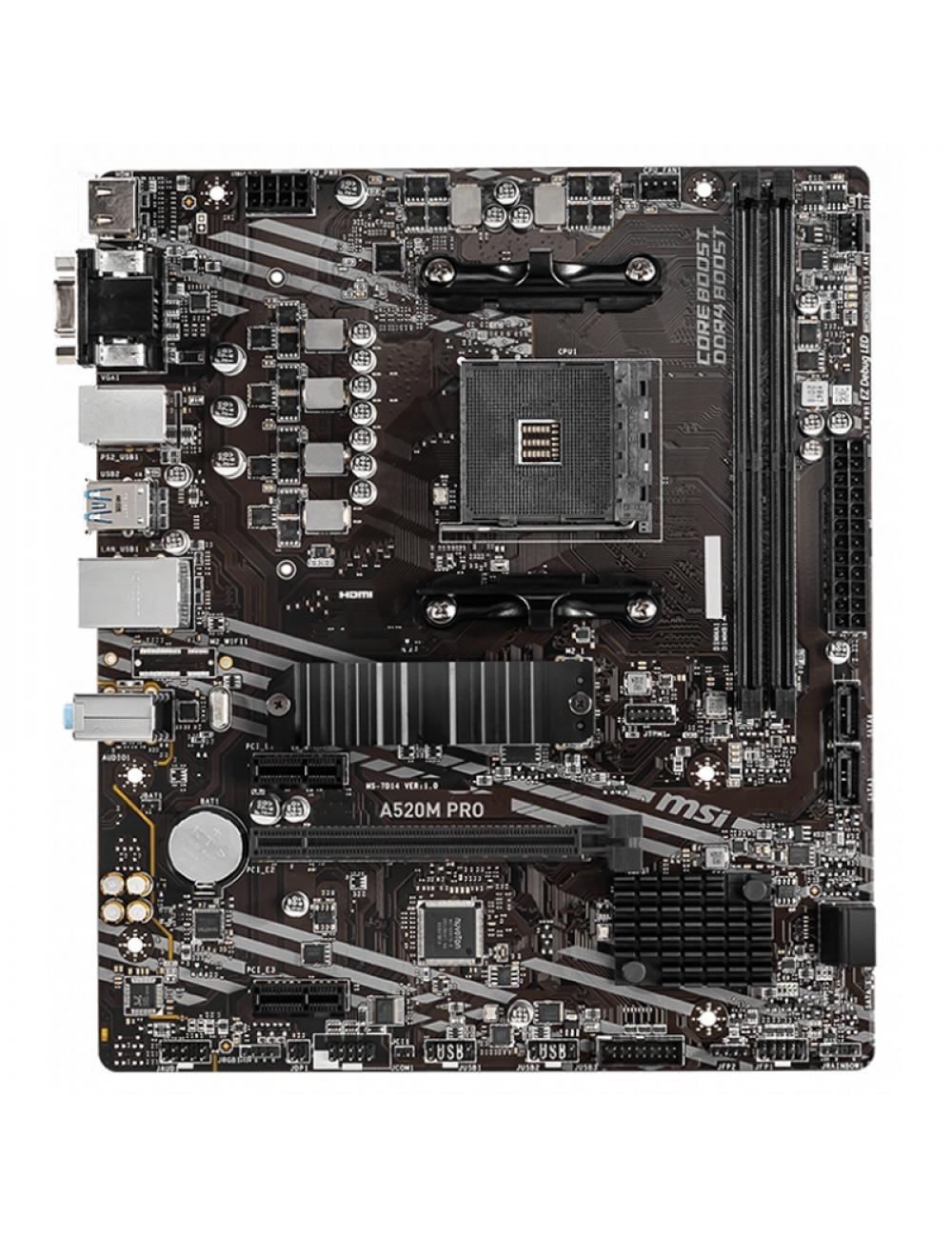

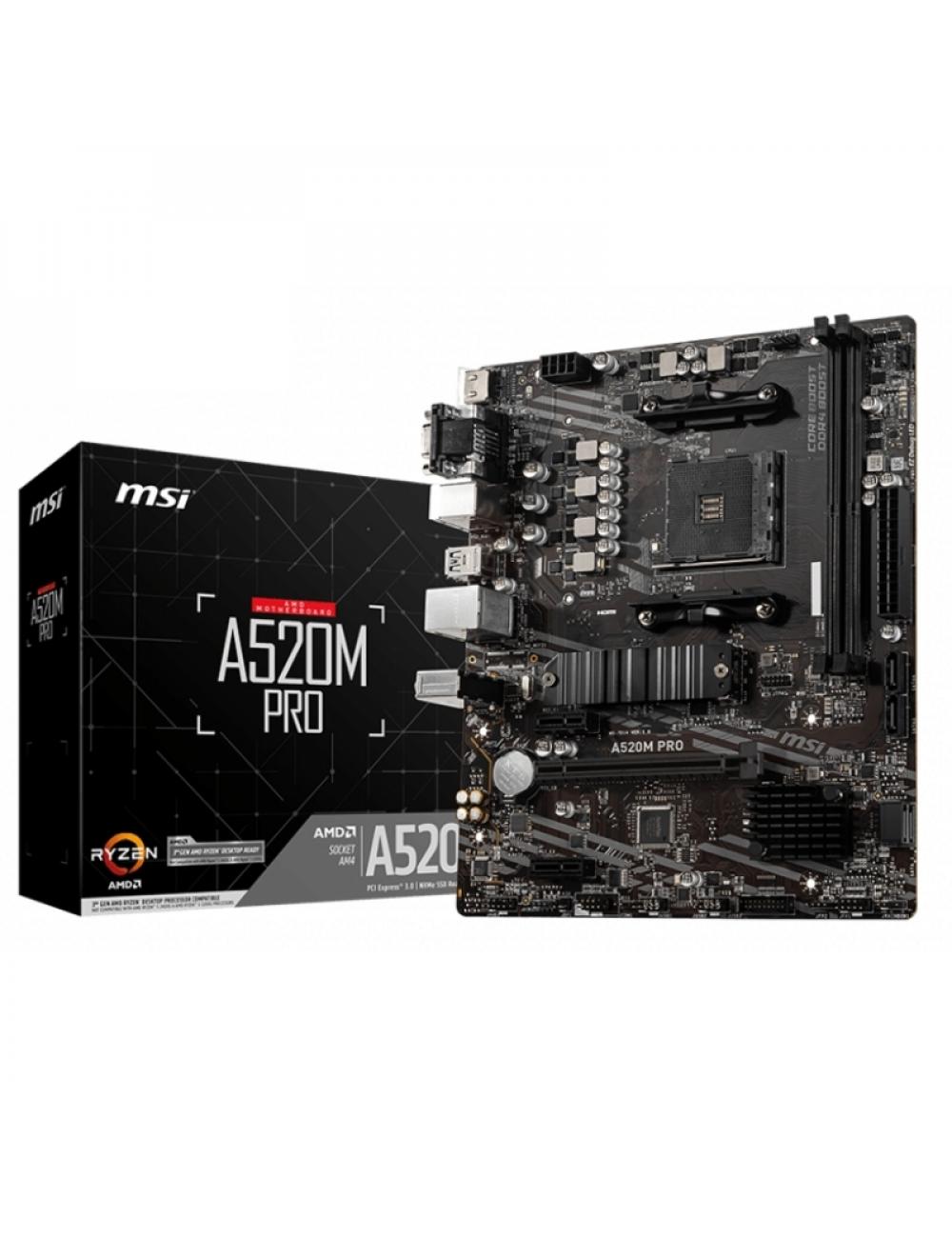

Msi placa base a520m pro matx am4
MSI

Msi placa base a520m pro matx am4

Referencia: 911-7D14-011
54,32 €
Impuestos excluidos
Placas base - AMD socket AM4 - MSI - Msi placa base a520m pro matx am4
Guía de Tallas
Guía de Tallas
CLOTHES
MEASUREXS/34S/36M/38-40L/40-42
UK681012
USA46810
FRA36384042
Waist (cm)64687276
Chest (cm)81858993
Seat (cm)899397101
Inseam (cm)81828384


SHOES
FOOT IN INCHESFOOT IN CMUSAEuroUK
23.56395
24.16.539.55.5
24.87.5406
1025.48417
10¼25.78.541.57.5
10½269428
10¾27.39.542.59.5

How to Take Clothing Measurements

  1. Get a flexible measuring tape. These are often sold in craft stores
  2. Neck:
    • Measure around the base of the neck in inches.
    • Round up to the nearest half inch.
  3. Chest:
    • Wrap tape measure under armpits around fullest part of chest (usually right above nipples
  4. Sleeve:
    • Bend your elbow and rest your hand on your hip.
    • Have someone measure from the middle of the back of your neck to your wrist by putting the tape measure over your shoulder, around your elbow and to your wrist.
  5. Waist:
    • Wrap tape measure around where you normally wear your pants. Keep tape measure a little loose by keeping a finger between the tape measure and your waist.
  6. Inseam:
    • Put on a pair of shoes.Have someone measure from your crotch to back of the heel, where you want your pants to end.
  7. Hands:
    • Measure around the hand at the fullest part (exclude thumb). The number of inches shows the size of the glove.
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)




Marca msi
Modelo A520M PRO
(911-7D14-011)
Plataforma - M-ATX (24.4 cm x 21 cm)
Chipset - AMD® A520 chipset
CPU
Soportado
- Admite AMD® Ryzen ™ 1st, 2nd y 3rd  Gen Ryzen™ Desktop Processors and AMD Ryzen™ 4000 G-Series Desktop Processors
Memoria - 2 x DDR4 memory slots, hasta 64GB
  Soporta DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
  Soporta DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
  - 1DPC 1R max speed 4600 MHz
  - 1DPC 2R max speed 3866 MHz
- Dual channel memory architecture
- Soporta non-ECC UDIMM memory
- Soporta ECC UDIMM memory (non-ECC mode)
- Soporta un-buffered memory
Slots Expansión - 1 x PCIe x16 slot (PCI_E2)
- 2 x PCIe 3.0 x1 slots
Gráficos - 1 x VGA
- 1 x HDMI 2.1
- 1 x DisplayPort
Puertos E/S,
Conectores

Internos
- 1 x 24-pin ATX main power
- 1 x 8-pin ATX 12V power
- 4 x SATA 6Gb/s
- 1 x Serial port
- 1 x M.2 slot (M-Key)
- 1 x USB 3.2 Gen 1 5Gbps
- 2 x USB 2.0
- 1 x 4-pin CPU fan
- 1 x 4-pin system fan
- 1 x Front panel audio
- 2 x System panel
- 1 x Chassis Intrusion
- 1 x 4-pin RGB LED
- 1 x 3-pin RAINBOW LED
- 1 x TPM module
- 1 x Clear CMOS jumper
Externos
- 1 x VGA
- 1 x PS / 2 puerto combinado
- 2 x USB 2.0
- 1 x DisplayPort
- 1 x LAN
- 1 x HD Audio
- 1 x HDMI
- 4 x USB 3.2 Gen1
Otras
Características
Almacenamiento
- 4 x SATA 6Gb/s ports
- 1 x M.2 slot (Key M)
RAID
- Soporta  RAID 0, RAID1 y RAID 10
USB
- 2 x USB 3.2 Gen 1
- 6 x USB 2.0
- 4 x USB 3.2 Gen 1
Red
- 1 x controlador Realtek® 8111H Gigabit LAN
Audio
- Códec Realtek® ALC892
- Audio de alta definición de 7.1 canales
Montaje
- 6 x agujeros de montaje
Fecha Revisión 04-10-2023 por RTY
