• Nuevo

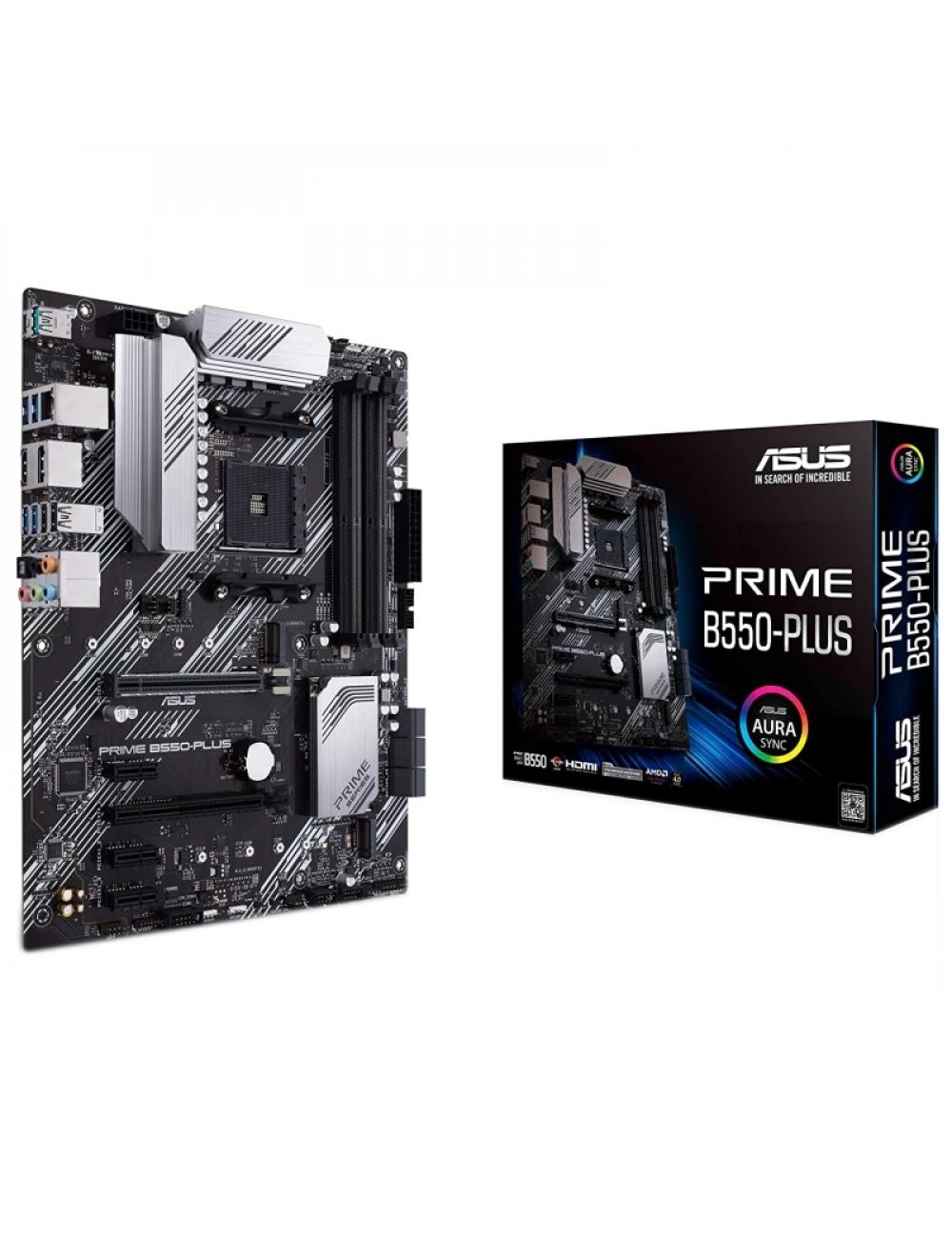

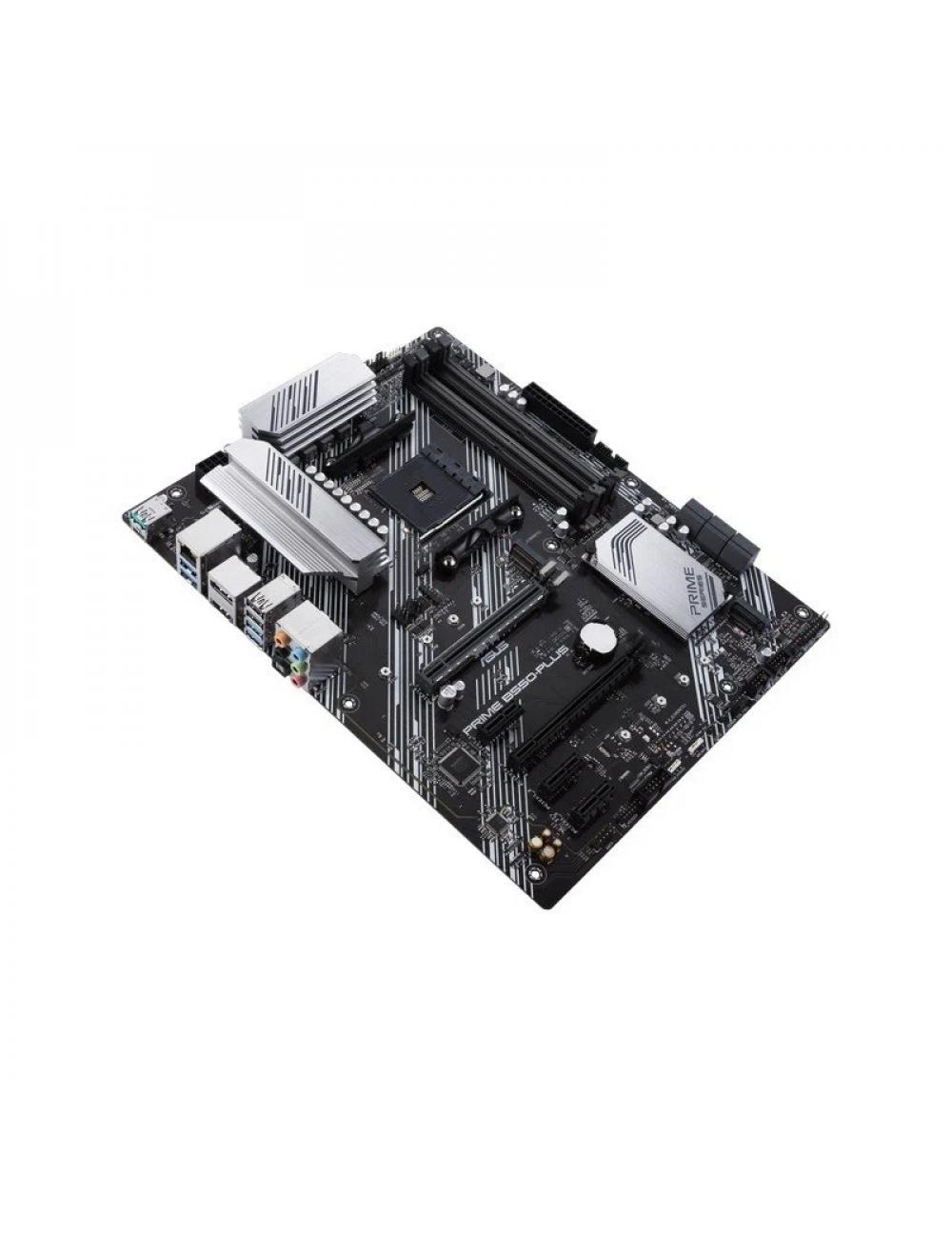

Asus placa base prime b550-plus atx am4
Asus

Asus placa base prime b550-plus atx am4

Referencia: 90MB14U0-M0EAY0
115,66 €
Impuestos excluidos
Placas base - AMD socket AM4 - Asus - Asus placa base prime b550-plus atx am4
Guía de Tallas
Guía de Tallas
CLOTHES
MEASUREXS/34S/36M/38-40L/40-42
UK681012
USA46810
FRA36384042
Waist (cm)64687276
Chest (cm)81858993
Seat (cm)899397101
Inseam (cm)81828384


SHOES
FOOT IN INCHESFOOT IN CMUSAEuroUK
23.56395
24.16.539.55.5
24.87.5406
1025.48417
10¼25.78.541.57.5
10½269428
10¾27.39.542.59.5

How to Take Clothing Measurements

  1. Get a flexible measuring tape. These are often sold in craft stores
  2. Neck:
    • Measure around the base of the neck in inches.
    • Round up to the nearest half inch.
  3. Chest:
    • Wrap tape measure under armpits around fullest part of chest (usually right above nipples
  4. Sleeve:
    • Bend your elbow and rest your hand on your hip.
    • Have someone measure from the middle of the back of your neck to your wrist by putting the tape measure over your shoulder, around your elbow and to your wrist.
  5. Waist:
    • Wrap tape measure around where you normally wear your pants. Keep tape measure a little loose by keeping a finger between the tape measure and your waist.
  6. Inseam:
    • Put on a pair of shoes.Have someone measure from your crotch to back of the heel, where you want your pants to end.
  7. Hands:
    • Measure around the hand at the fullest part (exclude thumb). The number of inches shows the size of the glove.
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)


MarcaAsus
ModeloPRIME B550-PLUS
(90MB14U0-M0EAY0)
Plataforma- ATX (30.5 cm x 24.4 cm)
Chipset- AMD® B550
CPU
Soportados
- Admite AMD Ryzen™ 3ª generación y AMD Ryzen™ 3ª generación con procesador de gráficos Radeon™ con Socket AMD AM4
Memoria- 4 x Memoria DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered
- Arquitectura de memoria Dual Channel
Slots Expansión
3rd Gen AMD Ryzen™ Processors
- 1 x PCIe 4.0 x16 (x16 mode)
AMD B550 Chipset
- 1 x PCIe 3.0 x16 (x4 mode)
- 3 x PCIe 3.0 x1
Gráficos- 1 x DisplayPort 1.2
- 1 x HDMI 2.1(4K@60HZ)
- Multi-GPU compatible
Puertos E/S,
Conectores

Internos
- 2 x Conector(es) USB 2.0 soporta(n) 4 USB 2.0 extra
- 1 x Zócalo M.2 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
- 2 x Conector Aura para tiras RGB
- 6 x Conector(es) SATA 6Gb/s
- 1 x Conector(es) ventilador de CPU
- 3 x Conector(es) ventilador chasis
- 1 x AIO_PUMP connector
- 1 x Conector Ventilador CPU OPT
- 1 x Conector de alimentación EATX de 24 contactos
- 1 x Cabezal Thunderbolt
- 1 x Conector de audio en panel frontal (AAFP)
- 1 x Conector para sensor térmico
- 1 x Addressable Gen 2 header(s)
- 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
- 1 x Jumper Clear CMOS
- 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
- 1 x SPI TPM header
- 1 x 8-pin EATX 12V Power connectors
- 1 x Conector de panel de sistema
- 1 x Conector puerto COM
Externos
- 1 x DisplayPort
- 1 x Red (RJ45)
- 1 x HDMI
- 1 x Salida S/PDIF óptica
- 5 x Jack(s) de audio
- 2 x USB 3.2 Gen 2 (color azul) (1 x Tipo A+1 x Tipo C)
- 4 x USB 3.2 Gen 1 (azul) Tipo A
- 2 x USB 2.0
Otras
Características
Almacenamiento
- 2 x M.2
- 6 x SATA 6Gb/s
- Soporta Raid 0, 1, 10
USB
- 2 x USB 3.2 Gen 2 (1 x Tipo A +1 x Tipo C)
- 4 x USB 3.2 Gen 1 (4 x Tipo A)
- 2 x USB 2.0 (2 x Tipo A)
- 2 x USB 3.2 Gen 1 (2 x Tipo A)
- 4 x USB 2.0 (4 x Tipo A)
Red
- Realtek® RTL8111H
- ASUS LANGuard
Audio
- Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC
Fecha Revisión14-09-2020 por MSB

Detalle de productos

21 Artículos

Referencias Específicas

ean13
4718017782340
Nuovo
