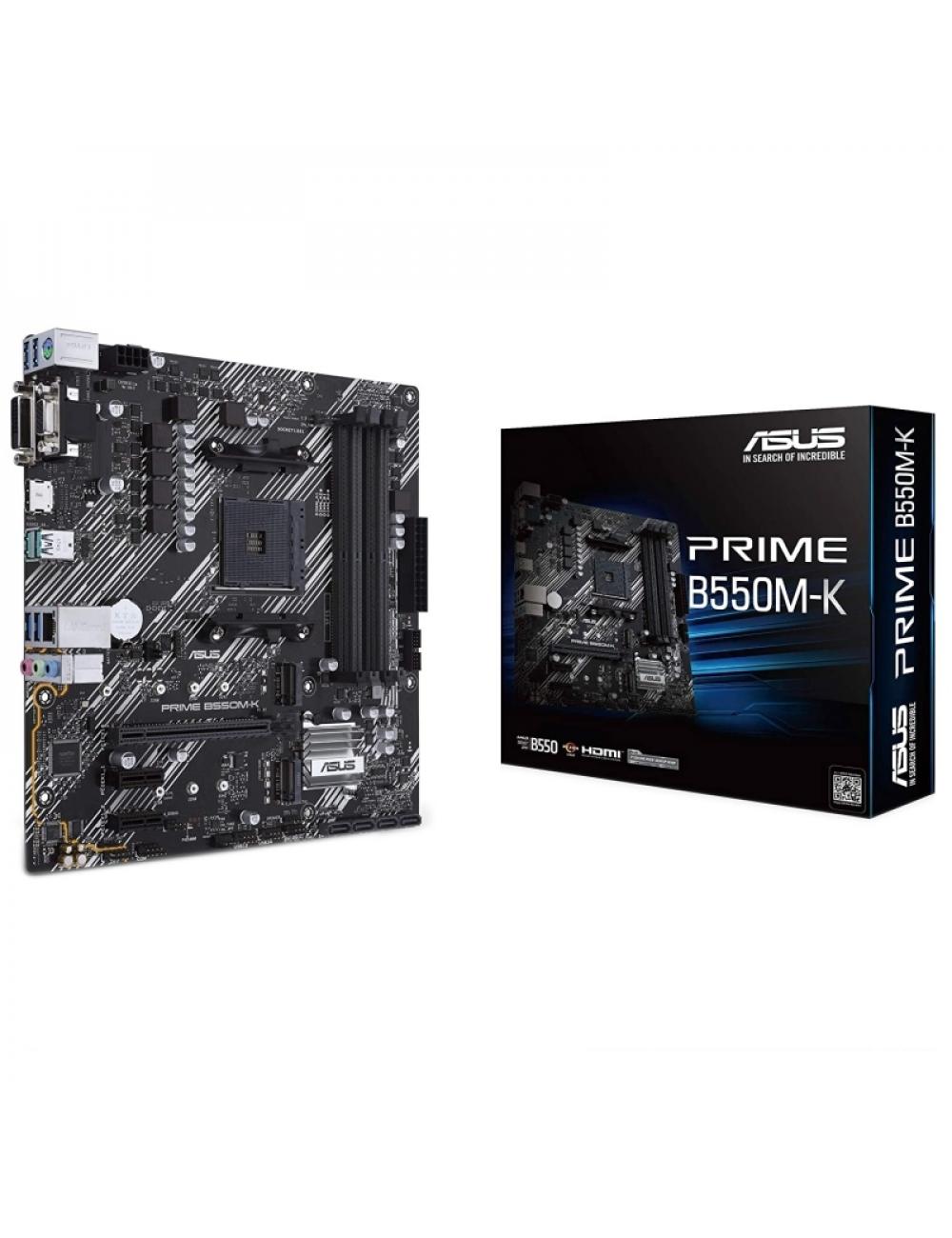

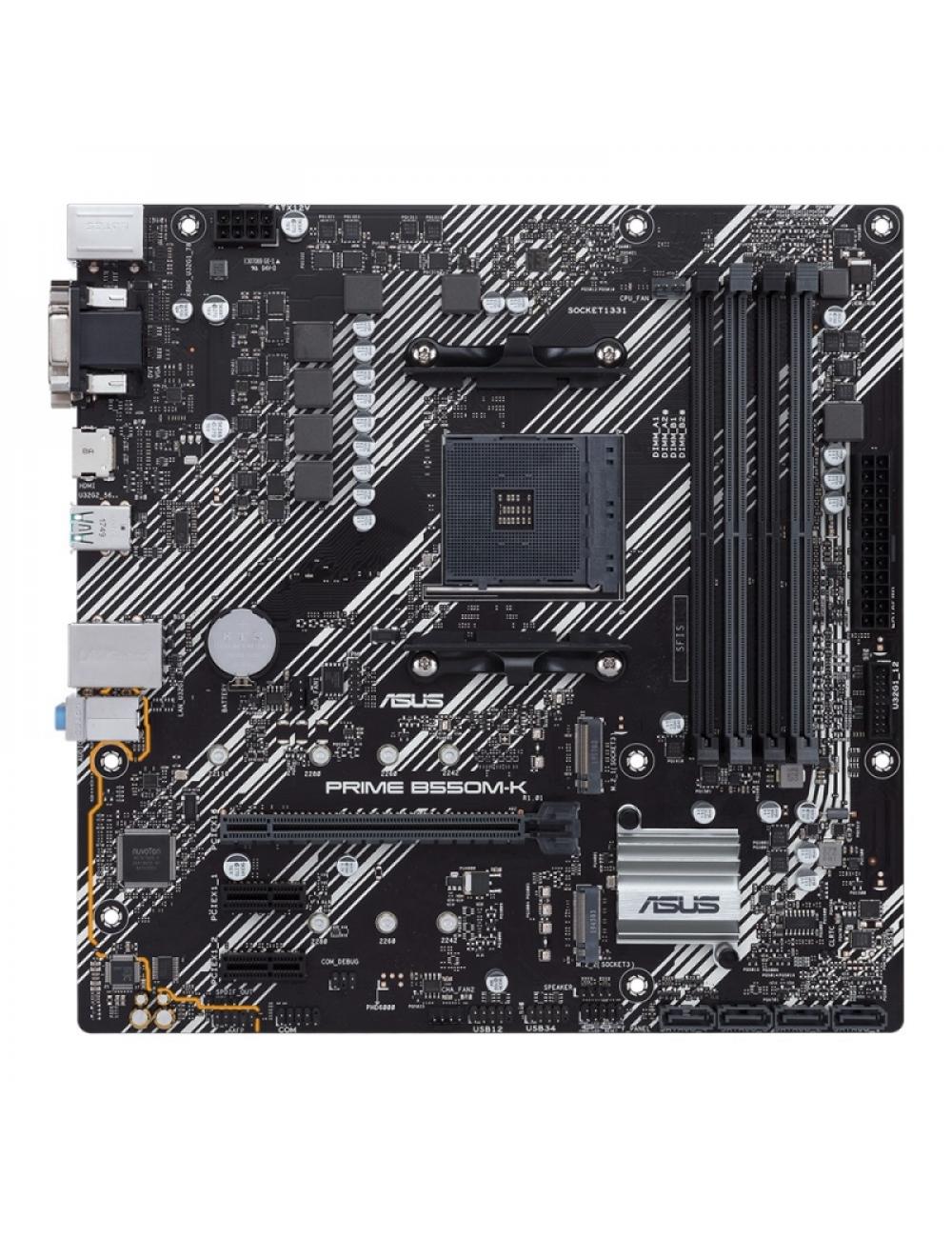

Asus placa base prime b550m-k matx am4
Asus placa base prime b550m-k matx am4
Asus placa base prime b550m-k matx am4
Asus

Asus placa base prime b550m-k matx am4

Referencia: 90MB14V0-M0EAY0
84,64 €
Impuestos excluidos
Placas base - AMD socket AM4 - Asus - Asus placa base prime b550m-k matx am4
Guía de Tallas
Guía de Tallas
CLOTHES
MEASUREXS/34S/36M/38-40L/40-42
UK681012
USA46810
FRA36384042
Waist (cm)64687276
Chest (cm)81858993
Seat (cm)899397101
Inseam (cm)81828384


SHOES
FOOT IN INCHESFOOT IN CMUSAEuroUK
9¼23.56395
9½24.16.539.55.5
9¾24.87.5406
1025.48417
10¼25.78.541.57.5
10½269428
10¾27.39.542.59.5

How to Take Clothing Measurements

  1. Get a flexible measuring tape. These are often sold in craft stores
  2. Neck:
    • Measure around the base of the neck in inches.
    • Round up to the nearest half inch.
  3. Chest:
    • Wrap tape measure under armpits around fullest part of chest (usually right above nipples
  4. Sleeve:
    • Bend your elbow and rest your hand on your hip.
    • Have someone measure from the middle of the back of your neck to your wrist by putting the tape measure over your shoulder, around your elbow and to your wrist.
  5. Waist:
    • Wrap tape measure around where you normally wear your pants. Keep tape measure a little loose by keeping a finger between the tape measure and your waist.
  6. Inseam:
    • Put on a pair of shoes.Have someone measure from your crotch to back of the heel, where you want your pants to end.
  7. Hands:
    • Measure around the hand at the fullest part (exclude thumb). The number of inches shows the size of the glove.
Cantidad
  Fuera de stock

Añadir a favoritos Añadir a comparar
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)


MarcaAsus
ModeloPRIME B550M-K
(90MB14V0-M0EAY0)
Plataforma- m-ATX (24.4 cm x 24.4 cm)
Chipset- AMD® B550 chipset
CPU
Soportados
- Admite AMD Ryzen™ 3ª generación y AMD Ryzen™ 3ª generación con procesador de gráficos Radeon™ con Socket AMD AM4
Memoria- 3ª Gen AMD Ryzen™
  4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *
- 3ª Gen AMD Ryzen™ con gráficos Radeon™
  4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *
- Dual Channel Memory Architecture
- ECC Memory (ECC mode)
Slots Expansión
3rd Gen AMD Ryzen™ Processors
- 1 x PCIe 4.0 x16 (x16 mode)
3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
- 1 x PCIe 3.0 x16 (x16 mode)
AMD B550 Chipset
- 2 x PCIe 3.0 x1
Gráficos- 1 x D-Sub
- 1 x DVI-D
- 1 x HDMI 2.1(4K@60HZ)
Puertos E/S,
Conectores

Internos
- 1 x CPU Fan
- 2 x Chassis Fan
- 1 x USB 3.2 Gen 1
- 2 x USB 2.0
- 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
- 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
- 1 x SPI TPM header
- 4 x SATA 6Gb/s
- 1 x S/PDIF out header(s)
- 1 x 24-pin EATX Power
- 1 x 8-pin EATX 12V Power
- 1 x Front panel audio (AAFP)
- 1 x Clear CMOS jumper(s)
- 1 x System panel
- 1 x COM port header
- 1 x Speaker
Externos
- 1 x PS/2 keyboard/mouse combo
- 1 x DVI-D
- 1 x D-Sub
- 1 x HDMI
- 1 x LAN (RJ45)
- 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A)
- 4 x USB 3.2 Gen 1 (blue) Type-A
- 3 x Audio jack(s)
Otras
Características
Almacenamiento
- 2 x M.2
- 4 x SATA 6Gb/s
- Soporta Raid 0, 1, 10
USB
- 2 x USB 3.2 Gen 2 (2 x Type-A)
- 4 x USB 3.2 Gen 1 (4 x Type-A)
- 2 x USB 3.2 Gen 1 (2 x Type-A)
- 4 x USB 2.0 (4 x Type-A)
Red
- Realtek RTL8111H 1Gb Ethernet
- ASUS LANGuard
Audio
- Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC
Fecha Revisión14-09-2020 por MSB
